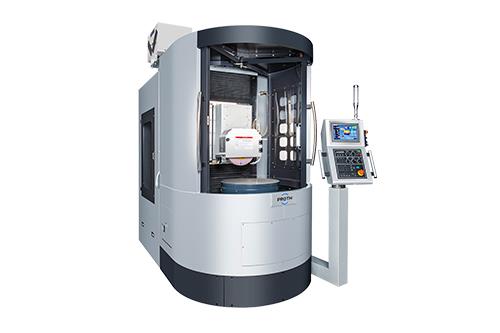

Rotary surface grinder series

2025-09-01 09:36:40


Cross Slideways	Cross Movement	Vertical Downfeed	Auto Down Feed	Rotary Table
Double Vee Ways	Servo Control	Rapid Up/Down	AD1 Standard	Bearings/Hydrostatic

·The surfaces of longitudinal table ways are all hand scraped to getting perfect contact pattern and to ensure very high accuracy.

·ongitudinal table ways are designed to have slide surfaces longer than that of the working surface and equal to the table length to keep the table free from torsion and deflection.

SPECIFICATION / MODELS			PSRC
			500S	600S	800S	1000S
General Capacity	Max. grinding radius	mm	290	340	450	550
	Spindle center height from table	mm	500
	Max height from table top to bottom of standard wheel	mm	322
	Table diameter	mm	500	600	8000	1000
Rotary Table	Max. speed	r.p.m.	10-60 (Hyd. Table 10-80)		10-60
	Table motor	KW	1.5kW/2HP(Hyd. Table 2kW)		3.5
Cross Movement	Continuous cross feed	mm/ min	2000
	MPG feed per revolution		0.1mm x1/x5/x10
	MPG feed per division		0.001mm x1/x5/x10
Vertical Downfeed	Rapid traverse approx.(option)	mm/min	400
	MPG feed per revolution		0.1mm x1/x5/x10
	MPG feed per division		0.001mm x1/x5/x10
Grinding Wheel	Dimension(O.D x W x I.D)	mm	355x50x127
	Spindle speed(50/60Hz)	r.p.m	1500/1800
Motor	Spindle motor		7.5kW/10HP		7.5kW/10HP(11kW/15HP)
Weight	Net weight	kg	4500	5000	6500	7000
	Gross weight	kg	5500	6000	8000	8500
Machine Size	Dimension (L x W x H)	m	2.5x1.9x2.6		4.1x2.2x2.5

Notes:

Since we subscribe to a process of continuous improvement for our products specifications are subject to change without notice.

Machine appearance will change depending upon different optional equipment selected.

Equipment marked with () is available at additional extra charge. Other special applications may be provided upon specific requests from customers. Please contact us for more details.

Machines are shown with optional equipments.

Optional：
