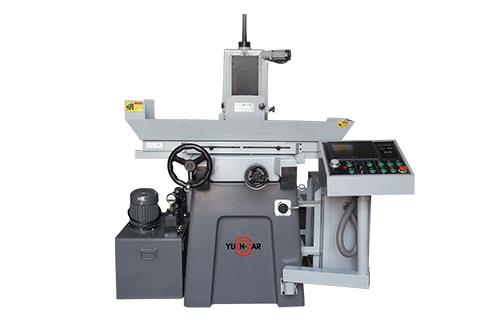

Saddle type surface grinder YD-618/250AS

2025-09-01 09:25:23

SPECIFICATION / MODELS				YD-618AS	YD-250AS
Capacity	Available area of working table		mm	150x460	200x460
	Maximum moving dimension from left to right		mm	470	510
	Maximum moving dimension from front to back		mm	160	250
	Maximum distance from surface of working table to spindle		mm	410	390
Working table and cross movement	Slot in working table		mmxN	16x1
	Speed of working table		m/min	5～25
	Front&rear handwheel feed	1rev	mm	0.1/1
		1gra	mm	0.001/0.01
	Auto-supplying from front to back		mm	0.1～8
	High speed moving from front to back		mm/min	1000(50HZ)
Grinding Wheel	Dimension(O.D x W x I.D)		mm	180x(3-13)x31.75
	Spindle speed	50HZ	r.p.m	2800
		60HZ	r.p.m	3600
Vertical movement	Vertical feed on handwheel	1rev	mm	0.01/0.1/1
		1gra	mm	0.001/0.01/0.1
	Auto down feed		mm	0.001/0.999
	Rapid power Vertical feed approx		mm/min	500
Motor	Spindle motor		HP	2
	Rapid head elevation motor		W	400
	Auto cross feed motor		HP	9
	Oil pressure motor		HP	1	2
	Coolant pump		HP	1/8
Weight	Net weight		kg	800	950
	Gross weight		kg	850	1000
Machine Size	Dimension (L x W x H)		m	1.36x1.5x2.06	1.48x1.5x2.09

Notes:

·The specification are subject to modification without notice.

Optional：
