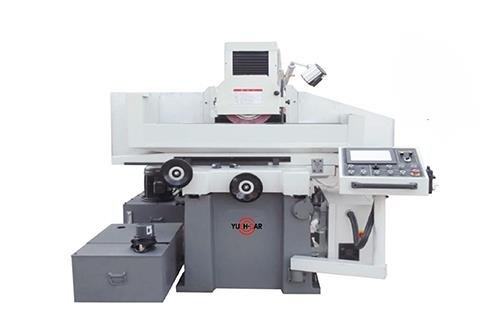

Saddle type surface grinder YD-2550/3060/4080AS

2025-09-01 09:22:57

SPECIFICATION / MODELS				YD-2550AS	YD-3060AS	YD-4080AS	YD-50100AS
Capacity	Available area of working table		mm	250x500	300x600	400x800	500x1000
	Maximum moving dimension from left to right		mm	540	640	840	1040
	Maximum moving dimension from front to back		mm	270	320	420	530
	Maximum distance from surface of working table to spindle		mm	510	580	700	680
Working table and cross movement	Slot in working table		mmxN	16x1		16x3
	Speed of working table		m/min	5～25
	Front&rear handwheel feed	1rev	mm	0.1/1
		1gra	mm	0.001/0.01
	Auto-supplying from front to back		mm	0.1～8
	High speed moving from front to back		mm/min	1000
Grinding Wheel	Dimension(O.D x W x I.D)		mm	200x(6-20)x31.75	3500x(20-40)x127
	Spindle speed	50HZ	r.p.m	2800	1450
		60HZ	r.p.m	3600	1750
Vertical movement	Vertical feed on handwheel	1rev	mm	0.01/0.1/1
		1gra	mm	0.001/0.01/0.1
	Auto down feed		mm	0.001/0.999
	Rapid power Vertical feed approx		mm/min	150
Motor	Spindle motor		HP	2/3	5	5/7.5	7.5
	Rapid head elevation motor		W	750
	Auto cross feed motor		HP	9
	Oil pressure motor		HP	2		3
	Coolant pump		HP	1/8
Weight	Net weight		kg	1550	2100	3000	4000
	Gross weight		kg	1600	2150	3050	4050
Machine Size	Dimension (L x W x H)		m	1.88x1.59x2.1	2.04x1.83x2.1	2.36x2.19x2.3	3.06x2.36x2.3

Notes:

·The specification are subject to modification without notice.

Optional：
