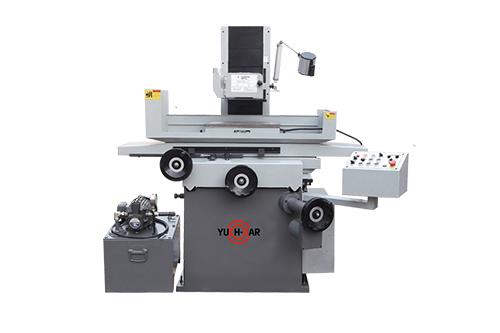

Saddle type surface grinder YD-2550AH/AHR

Table size

mm

250x500

300x600

400x800

Maximum longituditnal travel of table

mm

540

640

840

Maximum cross travel of table

mm

270

320

420

Distance spindle of table

mm

510

580

700

Front&rear handwheel feed

Automatic feed per

mm

0.1-8

0.1-8

0.1-10

1rev

mm

5

5

5

1gra

mm

0.02

0.02

0.02

Vertical feed on handwheel

1rev

mm

2

2

1

1gra

mm

0.01

0.01

0.005

Spindle speed(50/60Hz)

r.p.m

2800/3360

1450/1750/2800/3360

1450/1750

Spindle motor

HP

2/3

5/2

5/7.5

Grinding Wheel(O.D x W x I.D)

mm

200x(6-20)x31.75

355x(20-45)x127

355x(20-45)x127

Hydraulic motor

HP

2

2

3

Cross drive motor

W

60

60

60

Rapid elevation drive

W

—/80

80

80

Gross weight

kg

1500

2100

3000

Machine Size (L x W x H)

m

1880x1590x2100

2040x1830x2100

260x2190x2300

MAGNETIC GHUCK

MAGNETIC SINE PLATE

SINE PLATE

COMPOUND SINE PLATE

LNCLINABLE MAGNETIC CHUCK

PUNCH FORMER

WHEEL DRESSER

RADIUS FORMING ATTACHMENT

SURFACE PLATES

FLANCE

SINEVISE

TOOL MAKERS VISE

BALANCING STAND

ANGLE DRESSING DEVICE

PARALLEL

PAPER BAG FILTER

MAGNET FILTER

PAPER BAG MAGNET FILTER

DUST-SUCTION COOLING SYSTEM

COOLING SYSTEM
