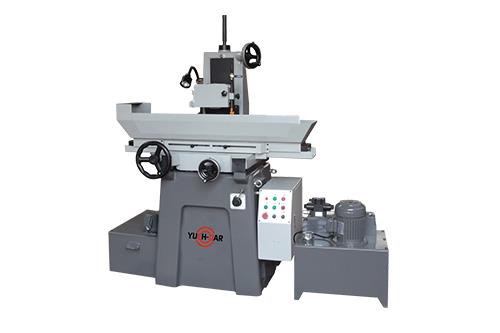

Saddle type surface grinder YD-618M/H/AH YD-250H/AH

Table size

mm

150x460

150x460

200x460

200x460

Maximum longituditnal travel of table

mm

470

470

510

510

Maximum cross travel of table

mm

160

160

250

250

Distance spindle of table

mm

410

370/340

400

390/370

Front&rear handwheel feed

1rev

mm

5

5

5

5

1gra

mm

0.02

0.02

0.02

0.02

Vertical feed on handwheel

1rev

mm

1

1

1

1

1gra

mm

0.05

0.05

0.05

0.05

Spindle speed(50/60Hz)

r.p.m

2800/3360

2800/3360

2800/3360

2800/3360

Spindle motor

HP

1.5/2

1.5/2

2

2

Grinding Wheel(O.D x W x I.D)

mm

180x(3-13)x31.75

200x(3-13)x31.75

200x(3-16)x31.75

Hydraulic motor

HP

—

1

—

2

Cross drive motor

W

—

—/40

—

—/40

Rapid elevation drive

W

—

—

—

—

Gross weight

kg

850

950

900

1000

Machine Size (L x W x H)

m

1490x1100x2060

1360x1500x2060

1500x1220x2090

1480x1500x2090

MAGNETIC GHUCK

MAGNETIC SINE PLATE

SINE PLATE

COMPOUND SINE PLATE

LNCLINABLE MAGNETIC CHUCK

PUNCH FORMER

WHEEL DRESSER

RADIUS FORMING ATTACHMENT

SURFACE PLATES

FLANCE

SINEVISE

TOOL MAKERS VISE

BALANCING STAND

ANGLE DRESSING DEVICE

PARALLEL

PAPER BAG FILTER

MAGNET FILTER

PAPER BAG MAGNET FILTER

DUST-SUCTION COOLING SYSTEM

COOLING SYSTEM
