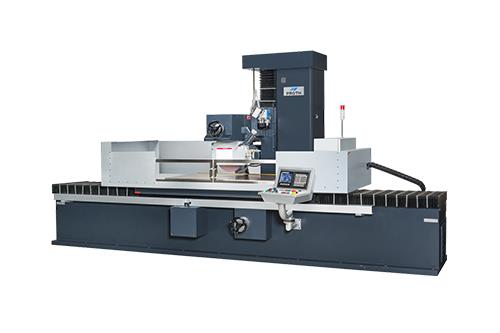

Over arm surface grinder series

2025-09-01 11:06:21


Longitudinal Slideways	Cross Slideways	Longitudinal Movement	Cross Movement	Vertical Downfeed	Auto Down Feed
Double Vee Ways	Flat Doveail Type Gibbed Ways	Hydrulic	Automatic	Rapid Up/Down	Optional

·The surfaces of longitudinal table ways are all hand scraped to getting perfect contact pattern and to ensure very high accuracy.

·Longitudinal table ways are designed to have slide surfaces longer than that of the working surface and equal to the table length to keep the table free from torsion and deflection.

SPECIFICATION / MODELS			PSGO
SPECIFICATION / MODELS			60150AHR	70150AHR	75220AHR	75300AHR
General Capacity	Max. travel (cross x longitudinal)	mm	660x1650	810×1650	810×2350	810×3150
	Spindle center height from table	mm	700（950）
	Max height from table top to bottom of standard wheel	mm	522
	Grinding surface of table	mm	600×1500	750×1500	750×2200	750×3000
Longitudinal Movement	Hydraulic table speed	m/min	1-25
Cross Movement	Intermittent cross feed-approx. (Electro-mechanical)	mm/feed	0.1-15
	Continuous cross feed-approx. (Electro-mechanical)	mm/ min	2000（50HZ）/2400（60HZ）
	Hand feed per revolution	mm	5
	Hand feed per division	mm	0.02
Vertical Downfeed	Rapid traverse approx.(option)	mm/min	200
	Hand feed per revolution		0.25
	Hand feed per division		0.0025
Grinding Wheel	Dimension(O.D x W x I.D)	mm	355x50x127
Grinding Wheel	Spindle speed(50/60Hz)	r.p.m	1500/1800
Motor	Spindle motor		7.5(11)kW/10(15)HP
Motor	Hydraulic motor		5.6kW/7.5HP
Weight	Net weight	kg	9350	11000	12500	14400
Weight	Gross weight	kg	10800	12300	14000	16000
Machine Size	Dimension (L x W x H)	m	5.1x2.5x2.6		6.6x2.5x2.6	8.4x2.5x2.6

Notes:

Since we subscribe to a process of continuous improvement for our products specifications are subject to change without notice.

Machine appearance will change depending upon different optional equipment selected.

Equipment marked with () is available at additional extra charge. Other special applications may be provided upon specific requests from customers. Please contact us for more details.

Machines are shown with optional equipments.

Optional：
