Longitudinal Slideways | Cross Slideways | Longitudinal Movement | Cross Movement | Vertical Downfeed | Auto Down Feed |
Double Vee Ways | Line Way | Hydraulic | Automatic(CNC Controlled System) | Rapid Up/Down | Optional |
NC：Cross/Vertical Servo Motor。
CNC：Cross/Vertical Servo Motor,Hydraulic by Longitudinal Automatic grinding wheel（OP：Left screw rods+Servo Motor）。

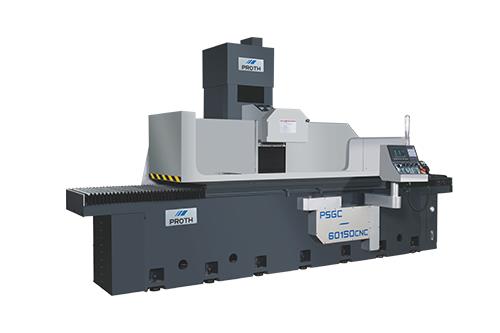

SPECIFICATION / MODELS | PSGC | ||||||
3070NC/CNC | 4080NC/CNC | 40100NC/CNC | 40120NC/CNC | 40150NC/CNC | |||
General Capacity | Max. travel (cross x longitudinal) | mm | 340×830 | 440×1000 | 440×1200 | 440×1300 | 440×1700 |
Wheel bottom to table (Vertical Head) | mm | 650 | |||||
Max height from table top to bottom of standard wheel | mm | 472 | |||||
Grinding surface of table | mm | 300×700 | 400×800 | 400×1000 | 400×1200 | 400×1500 | |
Longitudinal Movement | Driven | Hydraulic（OP Servo Motor） | |||||
Table speed | m/min | 3-25（OP：1-25） | |||||
Cross Movement | Continuous cross feed | mm/min | 0-1200 | ||||
Hand feed per revolution | mm | 0.001/0.005/0.01mm | |||||
Hand feed per division | mm | 0.001mm | |||||
Vertical Downfeed | Continuous cross feed | mm/min | 0-1200 | ||||
Hand feed per revolution | mm | 0.001/0.005/0.01mm | |||||
Hand feed per division | mm | 0.001mm | |||||
Grinding Wheel | Dimension(O.D x W x I.D) | mm | 355（400）×38×127 | ||||
Spindle speed(50/60Hz) | r.p.m | 1500/1800 | |||||
Motor | Spindle motor | 5.5(7.5)kW/7.5(10)HP | |||||
Cross/Vertical servo motor | kw | 1.7 | |||||
Hydraulic motor | 1.1(1.5)kW/2(3)HP | ||||||
Weight | Net weight | kg | 3900 | 4800 | 5000 | 5100 | 5500 |
Gross weight | kg | 4300 | 5200 | 5400 | 5500 | 5900 | |
Paching Size | Dimension (L x W x H) | m | 3.2×2×2.6 | 4.5×2×2.65 | 4.5×2×2.65 | 4.8×2×2.65 | 5×2×2.65 |
SPECIFICATION / MODELS | PSGC | ||||
50100NC/CNC | 50120NC/CNC | 50150NC/CNC | |||
General Capacity | Max. travel (cross x longitudinal) | mm | 560×1200 | 560×1300 | 560×1700 |
Wheel bottom to table (Vertical Head) | mm | 700 | |||
Max height from table top to bottom of standard wheel | mm | 522 | |||
Grinding surface of table | mm | 500×1000 | 500×1200 | 500×1500 | |
Longitudinal Movement | Driven | Hydraulic（OP Servo Motor） | |||
Table speed | m/min | 3-25（OP：1-25） | |||
Cross Movement | Continuous cross feed | mm/min | 0-1200 | ||
Hand feed per revolution | mm | 0.001/0.005/0.01mm | |||
Hand feed per division | mm | 0.001mm | |||
Vertical Downfeed | Continuous cross feed | mm/min | 0-1200 | ||
Hand feed per revolution | mm | 0.001/0.005/0.01mm | |||
Hand feed per division | mm | 0.001mm | |||
Grinding Wheel | Dimension(O.D x W x I.D) | mm | 355（400）×38×127 | ||
Spindle speed(50/60Hz) | r.p.m | 1500/1800 | |||
Motor | Spindle motor | 7.5(11/15)kW/10(15/20)HP | |||
Cross/Vertical servo motor | kw | 1.7 | |||
Hydraulic motor | 3.7(5.5)kW/5(7)HP | ||||
Weight | Net weight | kg | 5300 | 5400 | 6000 |
Gross weight | kg | 5700 | 5800 | 6400 | |
Paching Size | Dimension (L x W x H) | m | 4.5×2.2×2.6 | 4.8×2.2×2.6 | 5.0×2.2×2.6 |
SPECIFICATION / MODELS | PSGC | |||||
60120NC/CNC | 60150NC/CNC | 60220NC/CNC | 60300NC/CNC | |||
General Capacity | Max. travel (cross x longitudinal) | mm | 660×1400 | 660×1600 | 660×2300 | 660×3100 |
Wheel bottom to table (Vertical Head) | mm | 700 | ||||
Max height from table top to bottom of standard wheel | mm | 522 | ||||
Grinding surface of table | mm | 600×1200 | 600×1500 | 600×2200 | 600×3000 | |
Longitudinal Movement | Driven | Hydraulic（OP Servo Motor） | ||||
Table speed | m/min | 3-25（OP：1-25） | ||||
Cross Movement | Continuous cross feed | mm/min | 0-1200 | |||
Hand feed per revolution | mm | 0.001/0.005/0.01mm | ||||
Hand feed per division | mm | 0.001mm | ||||
Vertical Downfeed | Continuous cross feed | mm/min | 0-1200 | |||
Hand feed per revolution | mm | 0.001/0.005/0.01mm | ||||
Hand feed per division | mm | 0.001mm | ||||
Grinding Wheel | Dimension(O.D x W x I.D) | mm | 355(400)×38×127；OP:500×50(60)×127×(203.2) | |||
Spindle speed(50/60Hz) | r.p.m | 1500/1800；OP:1150/1250 | ||||
Motor | Spindle motor | 11(15)kW/12(20)HP | ||||
Cross/Vertical servo motor | kw | 1.7 | ||||
Hydraulic motor | 3.7（5.5）kW/5（7）HP | |||||
Weight | Net weight | kg | 9800 | 10200 | 11600 | 13000 |
Gross weight | kg | 10200 | 10800 | 12200 | 13400 | |
Paching Size | Dimension (L x W x H) | m | 4.8×2.86×2.7 | 5.6×2.86×2.7 | 6.6×2.86×2.7 | 8.5×2.86×2.7 |
SPECIFICATION / MODELS | PSGC | ||||
70150NC/CNC | 70220NC/CNC | 70300NC/CNC | |||
General Capacity | Max. travel (cross x longitudinal) | mm | 700×1500 | 700×2200 | 700×3000 |
Wheel bottom to table (Vertical Head) | mm | 700 | |||
Max height from table top to bottom of standard wheel | mm | 522 | |||
Grinding surface of table | mm | 730×1700 | 730×2300 | 730×3100 | |
Longitudinal Movement | Driven | Hydraulic（OP Servo Motor） | |||
Table speed | m/min | 3-25（OP：1-25） | |||
Cross Movement | Continuous cross feed | mm/min | 0-1200 | ||
Hand feed per revolution | mm | 0.001/0.005/0.01mm | |||
Hand feed per division | mm | 0.001mm | |||
Vertical Downfeed | Continuous cross feed | mm/min | 0-1200 | ||
Hand feed per revolution | mm | 0.001/0.005/0.01mm | |||
Hand feed per division | mm | 0.001mm | |||
Grinding Wheel | Dimension(O.D x W x I.D) | mm | 355(400)×38×127；OP:500×50(60)×127×(203.2) | ||
Spindle speed(50/60Hz) | r.p.m | 1500/1800；OP:1150/1250 | |||
Motor | Spindle motor | 11(15)kW/12(20)HP | |||
Cross/Vertical servo motor | kw | 1.7 | |||
Hydraulic motor | 5.7(7.5)kW/7(10)HP | ||||
Weight | Net weight | kg | 10400 | 11800 | 13200 |
Gross weight | kg | 11000 | 12400 | 13600 | |
Paching Size | Dimension (L x W x H) | m | 5.6×2.98×2.7 | 6.6×2.98×2.7 | 8.5×2.98×2.7 |
Notes:
Since we subscribe to a process of continuous improvement for our products specifications are subject to change without notice.
Machine appearance will change depending upon different optional equipment selected.
Equipment marked with () is available at additional extra charge. Other special applications may be provided upon specific requests from customers. Please contact us for more details.
Machines are shown with optional equipments.
Optional：
Wheel Flange |
Radius and Angle Dresser (PSGS) |
Type for PSGS)※With The Exception of PSGS-1535M, 1545M, 2045M |
 Cross/Vertical Micrometer Attachment (PSGS-2550AH, 3060BH, 4080AHR) |
Cooling System |
Level Type Wheel Balancer |
Electro Magnetic Chuck |
Automatic Paper Serip Filter |
Cooling System Magnetic Separato |
Parallel Dressing Attachment (PSGO) |
Dust-Suction Cooling System (PSGS) |
Auto-Parallel Dressing Attachment 2 Axes Full Auto(Electrical Cross+Step Control Down) |
1.Window Type Splash Guard (PSGS) 2.Rear Side Coolant Baffle (PSGS) |
Oil Temperature Control System |
Oil Mist Collector |
