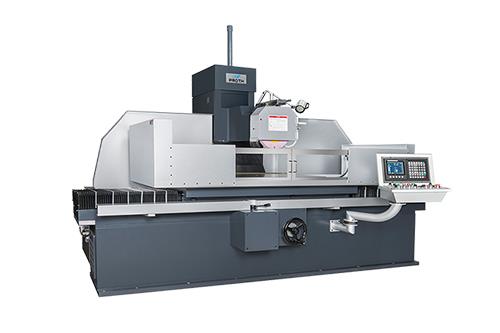

Column Surface Grinding Machine Series

2025-09-01 11:07:35


Longitudinal Slideways	Cross Slideways	Longitudinal Movement	Cross Movement	Vertical Downfeed	Auto Down Feed
Double Vee Ways	Double Vee Ways	Hydrulic	Automatic	Rapid Up/Down	Optional

·The surfaces of longitudinal table ways are all hand scraped to getting perfect contact pattern and to ensure very high accuracy.

·Longitudinal table ways are designed to have slide surfaces longer than that of the working surface and equal to the table length to keep the table free from torsion and deflection.

SPECIFICATION / MODELS			PSGC
SPECIFICATION / MODELS			50100AHR	50120AHR	50150AHR
General Capacity	Max. travel (cross x longitudinal)	mm	560×1150	560×1350	560×1650
	Spindle center height from table	mm	700
	Max height from table top to bottom of standard wheel	mm	522
	Grinding surface of table	mm	500×1000	500×1200	500×1500
Longitudinal Movement	Hydraulic table speed	m/min	1-25
Cross Movement	Intermittent cross feed-approx. (Electro-mechanical)	mm/feed	0.1-15
	Continuous cross feed-approx. (Electro-mechanical)	mm/ min	2000（50HZ）/2400（60HZ）
	Hand feed per revolution	mm	5
	Hand feed per division	mm	0.02
Vertical Downfeed	Rapid traverse approx.(option)	mm/min	400
	MPG feed per revolution		0.1mmx1/x5/x10
	MPG feed per division		0.001mmx1/x5/x10
Grinding Wheel	Dimension(O.D x W x I.D)	mm	355x50x127
Grinding Wheel	Spindle speed(50/60Hz)	r.p.m	1500/1800
Motor	Spindle motor		7.5(11)kW/10(15)HP
Motor	Hydraulic motor		3.7kW/5HP
Weight	Net weight	kg	5800	6100	7000
Weight	Gross weight	kg	6900	7500	8500
Machine Size	Dimension (L x W x H)	m	3.2x2.7x2.96	4x2.7x2.96	4.7x2.7x2.96

SPECIFICATION / MODELS			PSGC
SPECIFICATION / MODELS			60120AHR	60150AHR	60220AHR	60250AHR
General Capacity	Max. travel (cross x longitudinal)	mm	660x1350	660×1650	660×2350	660×2650
	Spindle center height from table	mm		700
	Max height from table top to bottom of standard wheel	mm		522
	Grinding surface of table	mm	600×1200	600×1500	600×2200	600×2500
Longitudinal Movement	Hydraulic table speed	m/min	1-25
Cross Movement	Intermittent cross feed-approx. (Electro-mechanical)	mm/feed	0.1-15
	Continuous cross feed-approx. (Electro-mechanical)	mm/ min	2000（50HZ）/2400（60HZ）
	Hand feed per revolution	mm	5
	Hand feed per division	mm	0.02
Vertical Downfeed	Rapid traverse approx.(option)	mm/min	400
	MPG feed per revolution		0.1mmx1/x5/x10
	MPG feed per division		0.001mmx1/x5/x10
Grinding Wheel	Dimension(O.D x W x I.D)	mm	355x50x127
Grinding Wheel	Spindle speed(50/60Hz)	r.p.m	1500/1800
Motor	Spindle motor		7.5(11)kW/10(15)HP
Motor	Hydraulic motor		3.7kW/5HP
Weight	Net weight	kg	8200	9300	10800	12500
Weight	Gross weight	kg	9600	10900	13900	15600
Machine Size	Dimension (L x W x H)	m	4x2.83x2.96	4.7x2.83x2.96	6.2x2.83x2.96	7.2x2.83x2.96

Notes:

Since we subscribe to a process of continuous improvement for our products specifications are subject to change without notice.

Machine appearance will change depending upon different optional equipment selected.

Equipment marked with () is available at additional extra charge. Other special applications may be provided upon specific requests from customers. Please contact us for more details.

Machines are shown with optional equipments.

Optional：
