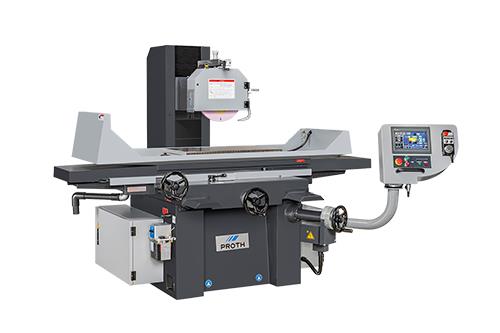

Saddle surface grinder PSGS-4080AHR

2025-09-01 11:08:13


Longitudinal Slideways

Cross Slideways

Longitudinal Movement

Cross Movement

Vertical Downfeed

Rapid up/Down

Auto Down Feed

One Vee Flat Way

Double Vee Ways

Hydrulic

Automatic

Manual

Optional/

Standard

·The surfaces of longitudinal table ways are all hand scraped to getting perfect contact pattern and to ensure very high accuracy.

SPECIFICATION / MODELS			PSGS
SPECIFICATION / MODELS			2550AH	3060BH	4080AHR
General Capacity	Max. travel (cross x longitudinal)	mm	280×600	340×700	460×900
	Spindle center height from table	mm	500	600
	Max height from table top to bottom of standard wheel	mm	322	422
	Grinding surface of table	mm	250×500	300×600	400×800
Longitudinal Movement	Hydraulic table speed	m/min	1-25（0.3-25）
Cross Movement	Intermittent cross feed-approx. (Electro-mechanical)	mm/feed	0.1-10
	Continuous cross feed-approx. (Electro-mechanical)	mm/ min	1000
	Hand feed per revolution	mm	4
	Hand feed per division	mm	0.02
Vertical Downfeed	Rapid traverse approx.(option)	mm/min	220
	Hand feed per revolution	mm	1
	Hand feed per division	mm	0.005
Grinding Wheel	Dimension(O.D x W x I.D)	mm	355x25x127	355x38x127
Grinding Wheel	Spindle speed(50/60Hz)	r.p.m	1500/1800
Motor	Spindle motor		2.2kW/3HP	3.7kW/5HP	3.7(5.6)kW/5(7.5)HP
Motor	Hydraulic motor		0.75KW/1HP		2.2KW/ 3HP
Weight	Net weight	kg	1350	1900	2800
Weight	Gross weight	kg	1700	2500	3400
Machine Size	Dimension (L x W x H)	m	1.7x1.87x1.8	1.95x1.95x1.9	2.55x2.1x1.9

Notes:

Since we subscribe to a process of continuous improvement for our products specifications are subject to change without notice.

Machine appearance will change depending upon different optional equipment selected.

Equipment marked with () is available at additional extra charge. Other special applications may be provided upon specific requests from customers. Please contact us for more details.

Machines are shown with optional equipments.

Optional：
