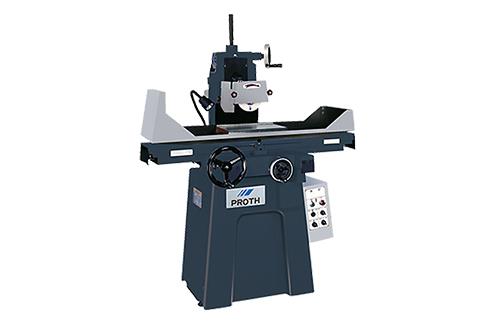

Saddle surface grinder PSGS-2045M

2025-09-01 11:08:31


Longitudinal Slideways	Cross Slideways	Longitudinal Movement	Cross Movement	Vertical Downfeed
One Vee Flat Way	Double Vee Ways	Manual	Manual	Manual

·The surfaces of longitudinal table ways are all hand scraped to getting perfect contact patternand to ensure very high accuracy.

SPECIFICATION / MODELS			PSGS
SPECIFICATION / MODELS			1535M	1545M	2045M
General Capacity	Max. travel (cross x longitudinal)	mm	170×380	175×480	220×485
	Spindle center height from table	mm	420
	Max height from table top to bottom of standard wheel	mm	330
	Grinding surface of table	mm	150×350	150×450	200×450
Longitudinal Movement	Hydraulic table speed		Manual
Cross Movement	Intermittent cross feed-approx.(Electro- mechanical)		Manual
	Continuous cross feed-approx.(Electro- mechanical)		Manual
	Hand feed per revolution	mm	5
	Hand feed per division	mm	0.02
Vertical Downfeed	Rapid traverse approx.(option)		Manual
	Hand feed per revolution	mm	1
	Hand feed per division	mm	0.005
Grinding Wheel	Dimension(O.D x W x I.D)	mm	180x13x31.75
Grinding Wheel	Spindle speed(50/60Hz)	r.p.m	3000/3600
Motor	Spindle motor		1.1kW/1.5HP		1.5kW/2HP
Motor	Hydraulic motor		Manual
Weight	Net weight	kg	670	780	800
Weight	Gross weight	kg	800	1020	1140
Machine Size	Dimension (L x W x H)	m	1x1.15x1.8	1.21x1.18x1.8	1.51x1.57x1.9

Notes:

Since we subscribe to a process of continuous improvement for our products specifications are subject to change without notice.

Machine appearance will change depending upon different optional equipment selected.

Equipment marked with () is available at additional extra charge. Other special applications may be provided upon specific requests from customers. Please contact us for more details.

Machines are shown with optional equipments.

Optional：
