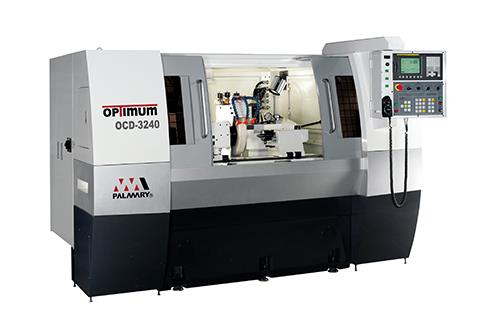

CNC cylindrical grinding machine series

2025-09-01 09:10:42


Rigid work spindle head

The rigid constructed spindle head employs high precision bearings assuring maximum spindle stability. It guarantess outstanding accuracy for external and internal diameter grinding (opt.) and face grinding.

Precision wheel spindle

The grinding wheel spindle is precisely machined form high quality alloy steel, normalized, tempered, carburized and sub-zero treated, precisely ground and mirror-effect treated. Non-deformation, maximum wear resistance and lifetime accuracy are assured.

Wheel spindle hydro-static bearing

The hybrid hydro-static bearings are used for the wheel spindle. Metal-to-metal contact will never occur with these highly rigid bearings design and also avoid vibration.

Tailstock lubrication system

An automatic oil bath lubrication system has been provided for the tailstock to maintain high-level accuracy. An oil level gauge enables quick oil status checking.

Model	OCD-2040	OCD-3240	OCD-3260	OCD-32100
Capacity
Swivel over table	Ø220 mm	Ø320 mm
Distance between centers	400 mm	400 mm	600 mm	1000 mm
Max. external grinding diameter	Ø200 mm	Ø300 mm
Max. load of centers	60 kgs	150 kgs
Grinding wheel
O.D. x width x I.D.	Ø355 x 38~50 x Ø127 mm	Ø405 x 50~75 x Ø127(Ø152.4) mm
Linear velocity	33 M/s
Grinding wheel head
Rapid speed	10 M/min
Max. stroke	260mm
Min. setting unit	0.001(0.0001) mm
Table
Rapid speed	10 M/min
Max. stroke	765 mm	665 mm	900 mm	1315 mm
Min. setting unit	0.001(0.0001) mm
Swivel angle	-3°, +10°	0°, +12°	0°, +10°	-3°, +8°
Work spindle head
Swivel angle	-30° ~+90°
Center taper	M.T. No. 3	M.T. No. 4
Spindle speed (variable)	10~300 r.p.m.
Max. load of spindle (tool holder included)	15 kgs(max. length: 100 mm)	35 kgs(max. length: 100 mm)
Tailstock
Taper center	M.T. No. 3	M.T. No. 4
Stroke	25 mm
Fine adjustment range	±0.03 mm
Motor
Wheel spindle	3.7kW	5.5kw
Work spindle	0.37kwFrequency	1kW	1.5kW
Wheelhead spindle	0.75 kW	1.2 kW
Table feed(AC Servo Motor)	1.2 kW	1.8 kW
Hydraulic pump	0.75 kW	0.37 kW
Wheel spindle lubricant	0.37 kW
Coolant pump	0.18 kW
Ballscrew lubrication	Auto lubricator (LUBE)
Internal grinding spindle (opt.)	0.37 kW	0.75 kW
Tank
Wheel spindle lubricant tank	28 L	31 L
Lubrication fluid tank	22 L	31 L
Hydraulic oil tank for opt. accessory	22 L	31 L
Ballscrew lubrication tank	0.7 L
Coolant tank	120 L
Machine weight
New weight	2350kgs	3300kgs	3600kgs	4300kgs

Model	OCD-4240	OCD-4260	OCD-42100	OCD-42150	OCD-42200
Capacity
Swivel over table	Ø420 mm
Distance between centers	400 mm	600 mm	1000 mm	1500 mm	2000 mm
Max. external grinding diameter	Ø400 mm
Max. load of centers	150 kgs
Grinding wheel
O.D. x width x I.D.	Ø405 x 50~75 x Ø127(Ø152.4) mm
Linear velocity	33 M/s
Grinding wheel head
Rapid speed	10 M/min
Max. stroke	260mm
Min. setting unit	0.001(0.0001) mm
Table
Rapid speed	10 M/min
Max. stroke	665 mm	900 mm	1315 mm	1805 mm	2540 mm
Min. setting unit	0.001(0.0001) mm
Swivel angle	0°, +12°	0°, +10°	-3°, +8°	-3°, +8°	-1°, +7°
Work spindle head
Swivel angle	-30° ~+90°
Center taper	M.T. No. 4
Spindle speed (variable)	10~300 r.p.m.
Max. load of spindle (tool holder included)	35 kgs(max. length: 100 mm)
Tailstock
Taper center	M.T. No. 4
Stroke	25 mm
Fine adjustment range	±0.03 mm
Motor
Wheel spindle	5.5kw(6P)
Work spindle	1kW	1.5kW		2kW
Wheelhead spindle	1.2 kW
Table feed(AC Servo Motor)	1.8 kW
Hydraulic pump	0.37kW(4P)
Wheel spindle lubricant	0.37 kW(4P)
Coolant pump	0.18 kW(2P)
Ballscrew lubrication	Auto lubricator (LUBE)
Internal grinding spindle (opt.)	0.75 kW(2P)
Tank
Wheel spindle lubricant tank	31 L
Lubrication fluid tank	31 L
Hydraulic oil tank for opt. accessory	31 L
Ballscrew lubrication tank	0.7 L
Coolant tank	120 L
Machine weight
New weight	3500kgs	3800kgs	4500kgs	5000kgs	6200kgs

*The mentioned specifications & dimensions are subject to change without notice.

STANDARD ACCESSORIES：

FANUC CNC controller x 1	Carbide tipped work centers (2 pcs/set) x 1
Fully enclosed splash guard x 1	Electric system x 1
Grinding wheel and flange x 1	Hydraulic tank with pump x 1
Diamond tool holder (tailstock mounted type)x1	Coolant tank with pump x 1
Micro adjustment tailstock x 1	Work lamp x 1
Linear scale (for X axis) x 1	Tools (Leveling pad) and tool box x 1

OPTIONAL ACCESSORIES：

Spare grinding wheel and grinding wheel flange	Adjustable 4-jaw chuck
Hydraulic tailstock	Wheel balancing stand and arbor
Internal grinding attachment	Auto. grinding wheel balancer
Cam locked driving dogs (6 pcs/set)	Touch probe gauge
Work holder (2 pcs/set)	Auto. matic in-process gauge
2-point steady rest	Magnetic coolant separator
Adjustable 3-point steady rest	Magnetic and paper filter
Adjustable 3-jaw scroll chuck	Oil mist collector
