Stable and rigid spindle head
The spindle runs on precision bearings, assuring maximum spindle stability. It guarantees outstanding grinding accuracy for external dia., internal dia. (optional) & end face.
Special hydrostatic bearing
The wheel spindle runs by using a special hydrostatic bearing and is especially ideal for precision grinding work. It features high speed, no friction between metals, no heat generation, deformation-free, extra high accuracy and continual use.
Precision wheel head
The grinding wheel spindle is precision machined from high quality alloy steel, normalized, tempered, carburized and sub-zero treated, precision ground and mirror-effect treated.
Various grinding application
One grinder allows straight plunge grinding, shoulder grinding, traverse grinding, end face grinding, taper grinding & internal grinding (optional) functions for different machining purpose.
Model | GU20x40S/NC |
Capacity | |
Swivel over table | Ø200/Ø210 mm |
Distance between centers | 400 mm |
Max. external grinding diameter | Ø180/Ø200 mm |
Max. load of centers | 60 kgs |
Grinding wheel | |
O.D. x width x I.D. | Ø355 x 38 x Ø127 mm |
Linear velocity | 33 M/s |
Grinding wheel - X axis | |
Manual distance | 135 mm |
Auto. rapid advance | 25 m/min |
Max. stroke | 185 mm |
Min. setting unit | 0.001 mm |
One turn of handwheel (graduation) | 2 (0.005) mm |
Table - Z axis | |
Traverse speed | 1.5 m/min |
Max. stroke | 480 mm |
Auto. reciprocate min. stroke | 8 mm |
Feed of one turn of handwheel (2-step) | 20 mm (2 mm) |
Swivel angle | -3° , +12° |
Work spindle head | |
Swivel angle | -30° ~ +90° |
Center taper | M.T. No. 3 |
Spindle speed (variable) | 10~300 r.p.m. |
Max. load of spindle (tool holder includer) | 15 kgs (max. length : 100 mm) |
Tailstock | |
Center taper | M.T. No. 3 |
Stroke | 20 mm |
Fine adjustment range | ±0.03 mm |
Motor | |
Wheel spindle | 2.2 kW (4P) |
Work spindle (AC Servo Motor) | 0.37 kW (4P) Frequency |
Hydraulic pump | 0.37 kW (4P) |
Wheel spindle lubrication pump | 0.18 kW (4P) |
Coolant pump | 0.18 kW (2P) |
Internal grinding wheel spindle (opt.) | 0.18 kW (2P) |
Power | |
Total voltage | 6 KVA/7KVA |
Tank | |
Wheel spindle lubricant tank | 7 L |
Hydraulic tank | 63 /46L |
Coolant tank | 110 L |
Machine weight | |
Net weight | 2000 kgs |

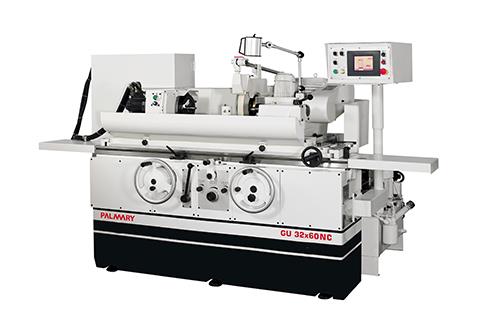

机种 | GU32/42x60S | GU32/42x200S | GU32/42x150S | GU32/42x200S | |
GU32/42x60NC | GU32/42x200NC | GU32/42x150NC | GU32/42x200NC | ||
Capacity | |||||
Swivel over table | Ø320 mm/Ø420 | ||||
Distance between centers | 600mm | 1000 mm | 1500 mm | 2000 mm | |
Max. external grinding diameter | Ø300mm/Ø400mm | ||||
Max. load of centers | 150 kgs | ||||
Grinding wheel | |||||
O.D. x width x I.D. | Ø405 x 50x Ø127 mm | ||||
Linear velocity | 33 M/s | ||||
Grinding wheel - X axis | |||||
Manual distance | 160 mm | ||||
Auto. rapid advance | 40 m/min | ||||
Max. stroke | 250 mm | ||||
Min. setting unit | 0.001 mm | ||||
One turn of handwheel (graduation) | 2 (0.005) mm | ||||
Table - Z axis | |||||
Traverse speed | 1.5 m/min | ||||
Max. stroke | 650mm | 1110mm | 1560mm | 2300mm | |
Auto. reciprocate min. stroke | 8 mm | ||||
Feed of one turn of handwheel (2-step) | 20 mm (2 mm) | ||||
Swivel angle | -2° , +10° | -3° , +8° | -3° , +7° | -1° , +7° | |
Work spindle head | |||||
Swivel angle | -30° ~ +90° | ||||
Center taper | M.T. No. 4 | ||||
Spindle speed (variable) | 10~300 r.p.m. | ||||
Max. load of spindle (tool holder included) | 35 kgs (最长长度 : 100 mm) | ||||
Tailstock | |||||
Center taper | M.T. No. 4 | ||||
Stroke | 25 mm | ||||
Fine adjustment range | ±0.03 mm | ||||
Motor | |||||
Wheel spindle | 3.7 kW (4P) | ||||
Work spindle (AC Servo Motor) | 0.85kW(4P)Frequency /1.3kW(4P)Frequency | 1.3kW (4P) Frequency /2.0kW (4P) Frequency | |||
Hydraulic pump | 0.37 kW (4P) | ||||
Wheel spindle lubrication pump | 0.18 kW (4P) | ||||
Coolant pump | 0.18 kW (2P) | ||||
Internal grinding wheel spindle(opt.) | 0.75 kW (2P) | ||||
Power | |||||
Total voltage | 9 KVA | 10 KVA | |||
10 KVA | 11 KVA | ||||
Tank | |||||
Wheel spindle lubricant tank | 7 L/9L | 9L | |||
Hydraulic tank | 63 L | ||||
Coolant tank | 110 L | ||||
Machine weight | |||||
Net weight | 2600/2800 kgs | 3200/3400 kgs | 4100/4300 kgs | 6000/6200 kgs | |
*The mentioned specifications & dimensions are subject to change without notice.
STANDARD ACCESSORIES：
Grinding wheel and flange x 1 | Hydraulic tank with pump x 1 |
Grinding wheel inverter x 1 | Coolant tank with pump x 1 |
Diamond tool holder (table mounted type) x 1 | Work lamp x 1 |
Carbide tipped work centers (2 pcs/set) x 1 | Tools (Leveling pad) and tool box x 1 |
Electric system x 1 |
OPTIONALACCESSORIES：
Diamond tool holder for internal and external grinding wheel dressing (upward open type) | 3-point steady rest |
Diamond tool holder (tailstock mounted type) | Adjustable 3-jaw scroll chuck |
Diamond tool holder for internal and external grinding wheel dressing (sideward open type) | Adjustable 4-jaw scroll chuck |
Angle trimming device | Magnetic coolant separator |
Radius trimming device | Magnetic coolant separator with paper filter |
Cam locked driving dogs (6 pcs/set) | Wheel forming device (Manual type, without auto. compensation) |
Work steady rest (2 pcs/set) | Wheel balancing stand and arbor |
