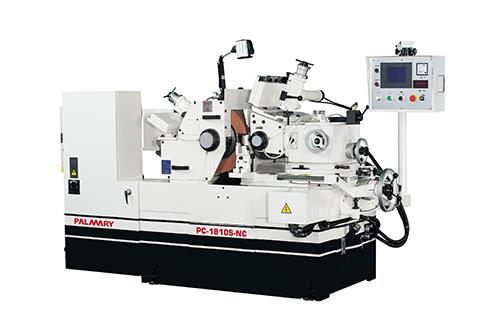

centerless Grinding Machine S/NC Series

2025-09-01 09:17:39


Precision spindles

The GW spindle and the RW spindle are precision machined and made from alley steel, processed with normalization, aging, and heat treatment, then proceed to sub-zero treatment, finally finished after precision machining and grinding.

Pressure switch

When starting the GW and RW spindle, this pressure switch allows starting only when oil enters into bearings thereby providing safety protection for the spindle bearings.

Feed screw

The feed screw is manufactured from alloy steel. It's also normailzed, high frequency harden and precision ground in order to have high feeding accuracy and excellent wear resistance.

Lubrication system

The automatic lubricator provides lubrication to the GW spindle. Also all slideways are lubricated by a centerlized lubrication system, ensuring proper lubrication and feeding accuracy.

Model	PC-12S	PC-18S	PC-1810S	PC-1812S	PC-20S
Grinding Wheel
Standard grinding range (dia.)	Ø1~Ø40 mm	Ø1~Ø80 mm
Capacity increases with special arrangement	Ø30~Ø60 mm	Ø40~Ø150 mm
Grinding wheel size (O.D. x width x I.D.)	Ø305x150xØ120mm	Ø455x205xØ228.6mm	Ø455x255xØ228.6mm	Ø455x305xØ228.6mm	Ø510x205xØ304.8mm
Linear velocity	33 M/s
Grinding wheel motor	7.5HPx 4P(5kW)	15HPx 4P(11kW)		20HPx4P(15kW)
Regulating Wheel
Regulating wheel size (O.D. x width x I.D.)	Ø205x150xØ90 mm	Ø255x205xØ111.2 mm	Ø255x255xØ111.2mm	Ø255x305xØ111.2mm	Ø305x205xØ127mm
Regulating wheel speed	10~300 r.p.m. (variable speed)
Regulating wheel motor	1.5kw servo motor	3kw servo motor			5kw servo motor
Regulating wheel tilt angle	±5°
Regulating wheel swivel angle	±5°
Handwheel Graduation
Upper slide feed graduation	4mm/rev/0.025mm/graduation	3.5 mm/rev / 0.05 mm/graduation
Upper slide micro-feed graduation	0.1mm/rev/0.001mm/graduation	0.1 mm/rev / 0.001 mm/graduation
Lower slide feed graduation	7mm/rev/0.05mm/graduation	9 mm/rev / 0.05 mm/graduation
Lower slide micro-feed graduation	0.2mm/rev/0.001mm/graduation	0.2 mm/rev / 0.001 mm/graduation
Trimming device graduation	1.25mm/rev/0.01mm/graduation	2 mm/rev / 0.01 mm/graduation
Motor
Hydraulic pump motor	1HP x 4P
Coolant motor	1/8HP x 2P	1/4HP x 2P
Lubrication	Manual Lubricator
Tank
Coolant tank	100 L	170 L
Hydraulic tank	53 L	88 L
Lubrication	0.6 L	0.6L
Weight
New weight	1700 kgs	2900 kgs	3000 kgs	3400 kgs	3700 kgs

Model	PC-24S	PC-2410S	PC-2412S
Grinding Wheel
Standard grinding range (dia.)	Ø1~Ø100 mm
Grinding wheel size (O.D. x width x I.D.)	Ø610x205xØ304.8mm	Ø610x255xØ304.8mm	Ø610x305xØ355.6mm
Linear velocity	40 M/s
Grinding wheel motor	30HPx 4P(22kW)
Regulating Wheel
Regulating wheel size (O.D. x width x I.D.)	Ø305x205xØ127 mm	Ø305x255xØ127mm	Ø330x305xØ127mm
Regulating wheel speed	10~300 r.p.m. (variable speed)
Regulating wheel motor	5kw servo motor
Regulating wheel tilt angle	+5°~-3°
Regulating wheel swivel angle	±3°
Handwheel Graduation
Slide feed graduation	2 kW servo motor
Slide micro-feed graduation	2.5 mm/rev/0.01 mm/graduation
Trimming device graduation	2 mm/rev / 0.01 mm/graduation
Motor
Hydraulic pump motor	1HP x 4P
Coolant motor	1/2HP x 2P
Lubrication	Manual Lubricator
Tank
Coolant tank	170 L
Hydraulic tank	88 L
Lubrication	0.6L
Weight
New weight	6000 kgs	6000 kgs	6000 kgs

Model	PC-12S-NC	PC-18S-NC	PC-1810S-NC	PC-1812S-NC	PC-20S-NC
Grinding Wheel
Standard grinding range (dia.)	Ø1~Ø40 mm	Ø1~Ø80 mm
Capacity increases with special arrangement	Ø30~Ø60 mm	Ø40~Ø150 mm
Grinding wheel size (O.D. x width x I.D.)	Ø305x150xØ120mm	Ø455x205xØ228.6mm	Ø455x255xØ228.6mm	Ø455x305xØ228.6mm	Ø510x205xØ304.8mm
Linear velocity	33 M/s
Grinding wheel motor	7.5HPx 4P(5kW)	15HPx 4P(11kW)		20HPx4P(15kW)
Regulating Wheel
Regulating wheel size (O.D. x width x I.D.)	Ø205x150xØ90 mm	Ø255x205xØ111.2 mm	Ø255x255xØ111.2mm	Ø255x305xØ111.2mm	Ø305x205xØ127mm
Regulating wheel speed	10~300 r.p.m. (variable speed)
Regulating wheel motor	1.5kw servo motor	3kw servo motor			5kw servo motor
Regulating wheel tilt angle	±5°
Regulating wheel swivel angle	±5°
Handwheel Graduation
Upper slide feed graduation	4mm/rev/0.025mm/graduation	3.5 mm/rev / 0.05 mm/graduation
Upper slide micro-feed graduation	0.1mm/rev/0.001mm/graduation	0.1 mm/rev / 0.001 mm/graduation
Lower slide feed graduation	7mm/rev/0.05mm/graduation	9 mm/rev / 0.05 mm/graduation
Lower slide micro-feed graduation	0.2mm/rev/0.001mm/raduation	0.2 mm/rev / 0.001 mm/graduation
Trimming device graduation	1.25mm/rev/0.01mm/graduation	2 mm/rev / 0.01 mm/graduation
Motor
Hydraulic pump motor	1HP x 4P
Coolant motor	1/8HP x 2P	1/4HP x 2P
Lubrication	Manual Lubricator
Controller
Brand	MISTUBISH FX3U-32MR
Tank
Coolant tank	100 L	170 L
Hydraulic tank	53 L	88 L
Lubrication	0.6 L	0.6L
Weight
New weight	1700 kgs	2900 kgs	3000 kgs	3400 kgs	3700 kgs

*The mentioned specifications & dimensions are subject to change without notice.

STANDARD ACCESSORIES：

Regulating wheel and flange x 1	Hydraulic tank with pump x 1
Grinding wheel and flange x 1	Coolant tank with pump x 1
Infeed work rest and carbide blade x 1	Diamond tools (2 pcs/set) x 1
Thrufeed work rest and carbide blade x 1	Work lamp x 1
Electric system x 1	Tools (Leveling pad) and tool box x 1

OPTIONAL ACCESSORIES：

Spare grinding wheel flange	Auto. loading and unloading attachment (infeed grinding)
Spare regulating wheel flange	Auto. loading attachment (thrufeed grinding) (Ø5~20 mm, L100~600 mm)
Large work rest (thrufeed grinding) L : 250~500 mm	Auto. unloading attachment (thrufeed grinding)
Infeed grinding large workrest	Auto. feeder for thrufeed grinding (hopper type) (Ø2~8 mm, L50~180 mm)
Wheel balancing stand and arbor	Vibratory feeder (thrufeed grinding)
Profile grinding attachment	V type supporter for long bar grinding (Ø2~14 mm)
Auto. infeed attachment	Magnetic coolant separator
Manual feeder for infeed grinding (up and down)	Paper filter
Hydraulic work ejector (infeed grinding)	Hydrocyclone coolant separator
