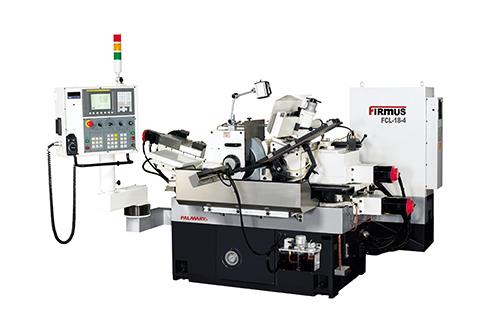

CNC centerless Grinding Machine Series

Grinding Wheel

Standard grinding range (dia.)

Ø1~Ø40 mm

Ø1~Ø60 mm

Capacity increases with special arrangement

Ø30~Ø60 mm

Ø40~Ø150 mm

Grinding wheel size (O.D. x width x I.D.)

Ø305x150xØ120mm

Ø455x205xØ228.6mm

Ø455x255xØ228.6mm

Ø510x205xØ304.8mm

Linear velocity

33 M/s

Grinding wheel motor

7.5HPx 4P(5kW)

15HPx 4P(11kW)

20HPx4P(15kW)

Regulating Wheel

Regulating wheel size (O.D. x width x I.D.)

Ø205x150xØ90 mm

Ø255x205xØ111.2 mm

Ø255x255xØ111.2mm

Ø305x205xØ127mm

Regulating wheel speed

10~300 r.p.m. (variable speed)

Regulating wheel motor

1.5kw servo motor

3.5 kw servo motor

5kw servo motor

Regulating wheel tilt angle

+5° ~ -3°

Regulating wheel swivel angle

±5°

Motor

Hydraulic pump motor

1HP x 4P

Coolant motor

1/8HP x 2P

1/4HP x 2P

Lubrication

Auto. electric lubricator

Controller

Brand

FANUC

Tank

Coolant tank

100 L

170 L

Hydraulic tank

53 L

88 L

Lubrication

4 L

4 L

Weight

New weight

1700 kgs

2900 kgs

3000 kgs

3700 kgs

Regulating wheel and flange x 1

Coolant tank with pump x 1

Grinding wheel and flange x 1

Diamond tools (2 pcs/set) x 1

Infeed work rest and carbide blade x 1

Work lamp x 1

Thrufeed work rest and carbide blade x 1

Tools (Leveling pad) and tool box x 1

Electric system x 1

Spare regulating wheel flange

Auto. loading attachment (thrufeed grinding) (Ø5~20 mm, L100~600 mm)

Large work rest (thrufeed grinding) L : 250~500 mm

Auto. unloading attachment (thrufeed grinding)

Infeed grinding large workrest

Auto. feeder for thrufeed grinding (hopper type) (Ø2~8 mm, L50~180 mm)

Wheel balancing stand and arbor

Vibratory feeder (thrufeed grinding)

Profile grinding attachment

V type supporter for long bar grinding (Ø2~14 mm)

Auto. infeed attachment

Magnetic coolant separator

Manual feeder for infeed grinding (up and down)

Paper filter

Hydraulic work ejector (infeed grinding)

Hydrocyclone coolant separator
