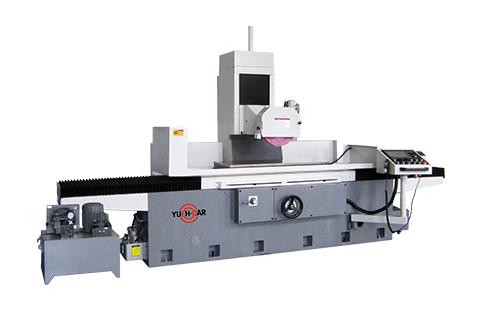

Column type surface grinder YD-50100~60200AS

2025-09-01 09:20:02

SPECIFICATION / MODELS				YD-50100AS		YD-50120AS		YD-50150AS
Capacity	Available area of working table		mm	500x1000	500x1200		500x1500
	Maximum moving dimension from left to right		mm	1040		1300		1600
	Maximum moving dimension from front to back		mm	540
	Maximum distance from surface of working table to spindle		mm	680
	Maximum load-bearing of the workbench		kg	1000
	Slot in working table		mmxN	16x3
	Speed of working table		m/min	5-25
Working table and cross movement	Front&rear handwheel feed	1rev	mm	5
		1gra	mm	0.02
	Auto-supplying from front to back		mm	0.5-12
	High speed moving from front to back		mm/min	1250(50HZ)/1500(60HZ)
	Working table guide rail			V-V
Grinding Wheel	Dimension(O.D x W x I.D)		mm	355x(20-40)x127
	Spindle speed(50/60Hz)		r.p.m	1450/1740
Vertical movement	Vertical feed on handwheel	1rev	mm	0.01/0.1/1
		1gra	mm	0.001/0.01/0.1
	Rapid power Vertical feed approx		mm/min	230
Motor	Spindle motor		HP	7.5x4
	Rapid elevation drive		W	1/2x4/1.5KW
	Hydraulic motor		HP	5x6
	Cross drive motor		NM	1/4x6/1.5KW
	Coolant pump		HP	1/4x2
Weight	Net weight		kg	5000	5100		5300
	Gross weight		kg	6500	6100		6300
Machine Size	Dimension (L x W x H)		m	4.5x2.4x2.3	4.5x2.4x2.3		4.5x2.4x2.3

SPECIFICATION / MODELS				YD-60100AS	YD-60120AS	YD-60160AS		YD-60200AS
Capacity	Available area of working table		mm	600x1000	600x1200	600x1600		600x2000
	Maximum moving dimension from left to right		mm	1040	1300	1700		2100
	Maximum moving dimension from front to back		mm	640
	Maximum distance from surface of working table to spindle		mm	700
	Maximum load-bearing of the workbench		kg	1500
	Slot in working table		mmxN	16x3
	Speed of working table		m/min	5-25
Working table and cross movement	Front&rear handwheel feed	1rev	mm	5
		1gra	mm	0.02
	Auto-supplying from front to back		mm	0.5-12
	High speed moving from front to back		mm/min	1250(50HZ)/1500(60HZ)
	Working table guide rail			V-V
Grinding Wheel	Dimension(O.D x W x I.D)		mm	400x(20-50)x127
	Spindle speed(50/60Hz)		r.p.m	1450/1740
Vertical movement	Vertical feed on handwheel	1rev	mm	0.01/0.1/1
		1gra	mm	0.001/0.01/0.1
	Rapid power Vertical feed approx		mm/min	230
Motor	Spindle motor		HP	10x4
	Rapid elevation drive		W	1/2x4/1.5KW
	Hydraulic motor		HP	7.5x6
	Cross drive motor		NM	1/4x6/1.5KW
	Coolant pump		HP	1/4x2
Weight	Net weight		kg	5500	6000	6500		7500
	Gross weight		kg	6500	7000	7500		8700
Machine Size	Dimension (L x W x H)		m	6x2.5x2.3		6x2.5x2.4	6.4x2.7x2.4

Notes:

·The specification are subject to modification without notice.
